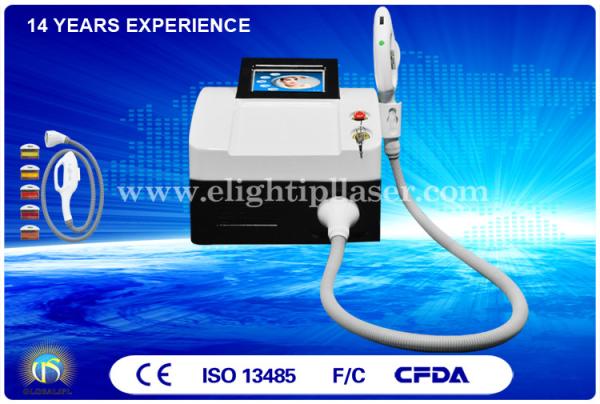

Home Used IPL Hair Removal Machine , White Portable Mini IPL
Machine 3 in 1
Theory
IPL (Intense Pulsed Light) is a kind of light with high energy and
broad wavelength, According to
the principle of IPL photorejuvenation technology, intense pulsed
light with broad spectrum affects
pigmentations, broken capillary vessels and hair follicles.
Photothermic and photochemical action
will be triggered by the radiation of IPL, pigments is shattered
and eliminated out of body by
metabolism. Meanwhile, IPL will also give a boost to collagen
production, which can make the skin
more flexible and smooth and remove fine wrinkles. The light with
long wavelength can easily pass
through epidermis to the hair follicles in the deep part of the
skin. At the targeted area, high
temperature occurs to destroy follicles and hair shaft and prevent
regrowth of new hair. With a
series of treatments, IPL technology can help restore a more
youthful appearance without downtime
and side effect
Specification
Display | 7.4 inch color-touch LCD screen |
Operation language | English, Spanish, Deutsch, Italian, French, Russian… 16in total |
Cooling system | Japanese semiconductor + air + water + cooling gel |
Output power | 1800W |
Voltage | 220V (110V)/15A 50Hz (60Hz) |
Machine Size | 43*39*36cm |
Package Size | 53*54*53cm for main machine; 55*48*12cm for parts |
Gross Weight | 43kgs |
IPL system | IPL energy density | 1-50J/cm2 |
IPL frequency | 1~4s |
Pulse no. | 1~6 |
Wavelength | 640nm standard |
Spot size | 15x50mm2 |
E Light system | IPL energy density | 1-50J/cm2 |
RF energy density | 1-50J/cm2 |
IPL frequency | 1~4s |
Wavelength | 480nm, 530nm, 590nm, 640nm, 690nm standard, (410nm/490nm for optional) |
Spot size | 13x30mm2, 13x40mm2,15*50mm2 for optional |
RF system | RF energy density | 1-50J/cm2 |
RF frequency | 6MHz |
RF delay | 100-1500ms |
Interval | 1-4s |
Spot size | 20/28/35mm dia. |
Applications:
1). Hair removal
2). Skin rejuvenation
3). Wrinkle Removal
4). Pigment therapy
5). Vascular therapy
6). Breast lifting up
Features:
1.Joint part adopts the most advanced "plug and play" technology,
integrating the water and
electricity protection automatically, makes installation more easy, safe and reliable
2. Special technique, automatic energy adjustable system
3.7.4 inch color touch screen operating, simple and convenient
4. UL standard independently adjustable three kinds of pulses
design, obeying the clinic ten
years experiences
5. Humanized menu, easy operation
6. Water level, water flow and water automatic detection greatly
increases machines' life
expectancy and safety
7. Hand-touch, foot-touch and switches satisfy your different
operating habits
8. Multilingual arbitrary languages, anywhere in the world can be
easily grasped
9. Smart system clock makes the operator control the time easily
10. Alarm system:
1). Water temperature alarm system: the water temperature will rise
as long
continuous working. For a good cooling result and more safe
protection, we set
up the water temperature as 55 ℃. when the actual water temperature
over 55
℃, the machine will automatically stop all working immediately and
continuous
sound warning. After 15-30 minutes rest, can restart the normal
work.
2). Water flow alarm system: you know the equipment can work well
under good
water circulation, or seriously can damager some parts or machine;
so an
intelligent water flow alarm system is more important. If no water
or little water
inside machine, or bad water circulation, the machine will
automatically stop
all working immediately and sound warning at the same time. In this
case, it
will protect the operator and machine at the first time.
11. Perfect cooling system: Japanese semiconductor + water + air +
cooling gel, and the skin
temperature -3-10℃.
12. Non- invasive treatment, no side effect, no scar
13. Beauty and durable packing case: aluminum alloy box with this
sponge and strong support.
