Feedback Price Big Spot Size Hair Removal Machine for Man and Woman Use
Description of Diode Laser Machine
1. Permanent hair removal
2. Micro-channel diode laser Emitter
3. Fast *Safe *Painless * Non Invasive * Reliable * Effective
Work Theory
Diode laser hair removal technology is based on the selective
dynamics of light and heat. The laser goes through the skin surface
to reach the root of hair follicles, light can be absorbed and
converted into heat damaged hair follicle tissue, so that the hair
papilla is damaged without injury surrounding tissue. No pain, easy
operation, the most safe, technology for permanent hair removal
now.
Machine parameters
| Basic Parameters |
| Laser type | Micro-channel Diode laser |
| Model No. | US408 |
| Output power | 2700W |
| Wavelength | 808nm |
| Display | 8.4”color touch LCD screen |
| Spot size | 13x13mm2 |
| Pulse width | 10-1400ms adjustable |
| Energy | 1-120J/cm2 adjustable |
| Frequency | 0.5-10Hz |
| Cooling | Water + air + Semiconductor |
| Machine size | 56x40x108cm |
| Package | Aluminum Cases |
| Voltage: | AC 220V/50Hz; AC 110V/60Hz |
Features
1. Powerful cooling system- Semiconductor Thermal Management
System:
1) the water temperature could decrease 11°C within 10 minutes;
2) the machine could work continuously for 24 hours a day without
stop more treatments permitted;
3) “constant temperature” working prolong laser and machine life
save cost.

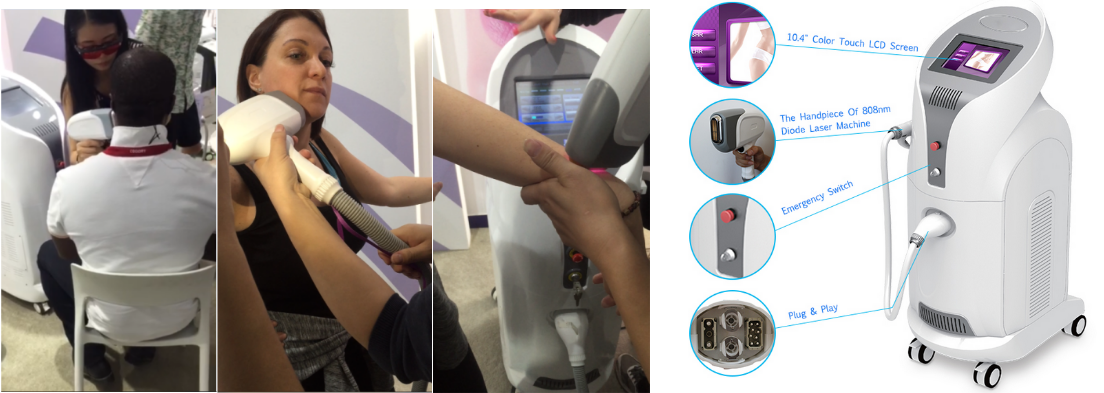

2. New developed handpiece & connector practical and elegant.
1) The imported tube is locked firmly to probe and connector strong
& durable;
2) USA CPC Water Connector & Germany Harting Electronic Connector.
3) Humanized bending design maximum protect inner cable from
vertical fold and water flow smoothly for better cooling.
3. Big spot size 13x13 mm2 high efficiency quick speed achieves large area treatment.
4. Imported high quality diode laser bars Germany standard.
5. Imported water pump no noise and larger water flow for better
cooling prolong laser life.
6. Medical CE approval high quality promised.
Application
Permanent & Painfree Hair removal on all body of skin type I-VI.
-- lip hair removal beard hair removal chest hair removal armpit
hair removal back hair removal & hair removal on outside bikini
line etc.
Any hair color removal
Any skin color hair removal
Packaged Items
| No. | Name | Type / Specifications | Qty. |
| 1 | Main unit of US408 Diode Laser Hair Removal Instrument | US408 | 1 set |
| 2 | Laser handle | 13*13 / 13*39mm2 spot size | 1 PC |
| 3 | Foot switch (IPX1) | MDFS01 | 1 set |
| 4 | Safety goggles | SD-4 | 2 pairs |
| 5 | Fuse | LA.M31 | 2 PCS |
| 6 | Water filters | ----- | 2 set |
| 7 | Water conductance test meter | | 1 PC |
| 8 | Power line | | 1 PC |
| 9 | Start-up key | ---- | 2 sets |
| 10 | Water tube and water funnel | | 1 set |
Please open the packaging box to check up whether the accessories
are complete or not, if the accessories have lost in
transportation, please contact us according to the contact
information in the last page.
Contraindications:
- The patients with the keloid history and photosensitivity diseases.
- Having the history of skin infections or herpes simplex in the
treatment region.
- Within 6 weeks, other ways for hair removal had been used.
- The patients who are allergic to hydroquinone drugs or other
bleaching agents.
- Pregnant women and the patients with the malignant tumor.
- The patients with the history of taking Lsotretinoin within 6
months.
How to set the parameter?
First, please choose the suitable “Frequency”. Normally we advise
“3-5HZ”.
Second, according to the “frequency”, please set up the “Pulse
width”. From our clinical test, the larger the pulse width is, the
safer it is for the customer, the best the treatment result will
be.
Third, finally please adjust suitable energy according to
customers’ feeling. Normally we advise 15-40J.
Note:
--SHR mode, frequency range is 1~10Hz for different options.
--LHR mode, frequency range is 1~3Hz for different options, under
this mode is suitable for black skin therapy or sensitive skin
therapy.
