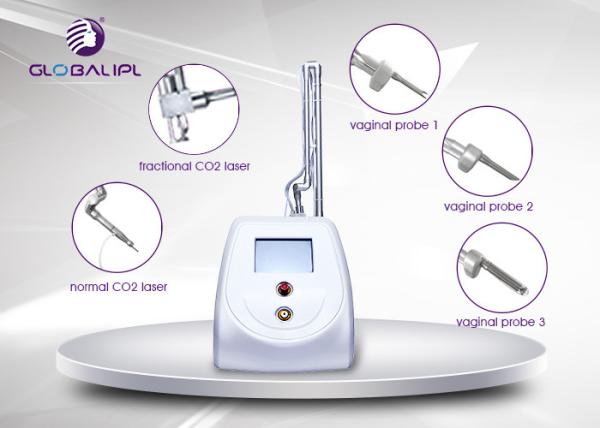

Laser Scar Removal CO2 Fractional Machine Normal Co2 3 Working
Modes
Specification
Laser type | RF Tube (USA Coherent) |
Output power | 30W |
Wavelength | 10.6μm, far-infrared laser |
Display | 8.4 inch color touch LCD screen |
System & Probes | 3 systems, 5 probes |
Pulsed Radio Frequency | 0.530W |
Scan Graphics (7 graphics) | Square, rectangle, round, triangle, oval, 6-diamond shape, line |
Scan Graphic Size | 0.1x0.1mm – 20x20mm |
Scan mode (3 modes) | Random, Sequence, the Maximum Distance A&B, Equidistance, Fast
Shot |
Working State | Hyper-pulsed mode |
Pulse Duration | 0.1-10 ms |
Pulse energy | 10mj to 130mj is optional for each dot |
Spot Distance | 0.1-2.6 mm |
Interval | 0-6s |
Repeat | 1-5000 ms |
Overlap | 1-20 times |
Condenser Focus | F=50mm |
Beam divergence angle | 0.3mrad |
Spot Size | 0.01mm at the focus |
Aiming Beam | Less than 2Mw, 635nm red semiconductor laser |
Beam Transport Device | 7-joint articulated optical arm |
Laser Apparatus | Sealed off laser unit stimulated by direct current |
Cooling System | Air |
Power Supply | 220V/110V |
Dimension of machine | 72x38.5x42.5cm |
Package Standard | 2 cases standard: Case 1: 80.5x51.5x53.5cm;Case 2: 80x40x30cm |
Net Weight | 27kgs |
Gross Weight | 48kgs |
Vaginal Treatment
1. Work Theory
It concerntrated trearmal heating of the vaginal tissue inner
layers induces collagen
and elastine contraction and regeneration of these proteins in the
longer term. These
molecular signal activate the entire wound healling process of the body's local immune
system. The treatment outcome is the complete remodeling of the vaginal tissue in
addition to re-establishment of firm “young like" vaginal tissue embedded with string-like,
thick and long collagen fibers.
2. Applications
Tighten vagina –Fast tightening, lasting constriction, tightness to improve 60%;
Clean the vagina – Deep anti-aging, young level to improve 80%;
Moist vagina – Improving secretion, moisture level to improve 80%;
Pink vagina – Vulva rejuvenation, lighten pigment and pinks labia parts,
delicate degree
to improve 70%
Fractional Therapy
1. Work Theory
Unlike traditional laser, fractional laser will only cover part of
the skin tissue, leaving the
surrounding tissue intact, and then cause a series biochemical reactions inside
the skin,
thus to reach the results of skin lifting & resurfacing, pigments and scar removal, etc,
finally let the skin return to young again.
The unaffected areas act as a reservoir for more effective and
rapid tissue healing and
collagen production, thus lift the skin and removes speckles and pigments
2. Applications
1) Skin renewing and resurfacing
2) Wrinkle removal, skin tightening
3) Acne and scar removal, melasma removal
4) Smooth scars like burn, surgery, traumatic, and stretch marks,
etc
5) Remove intractable chloasmas and pigmentation
6) Sun damage recovery
Advantage
1. USA Coherent brand – Metal RF Tube;
Even output energy, deeper penetration ( 8-10mm under the skin)
Long lifespan: 8-12 years.
Thinner spot: ≥0.01mm.
2. 3 in 1 system, easy and convenient for operation
3. Imported excellent 7 articular optical-arm, easy operated and greatly reduces the
energy loss;
4. Best fractional probe- CPG (Central Pattern Generator), big and even energy output,
deep penetration;
5. 6 scan modes: Sequence, Random, Maximum distance A& B, Equidistance and
fast shot;
6. 7 scan shapes, scan size 0.1*0.1mm-20*20mm
7. Ultra-quiet pump used, lower noise but larger water flow;
8. The screen can be folded up and down, rotate 180° left and right.
