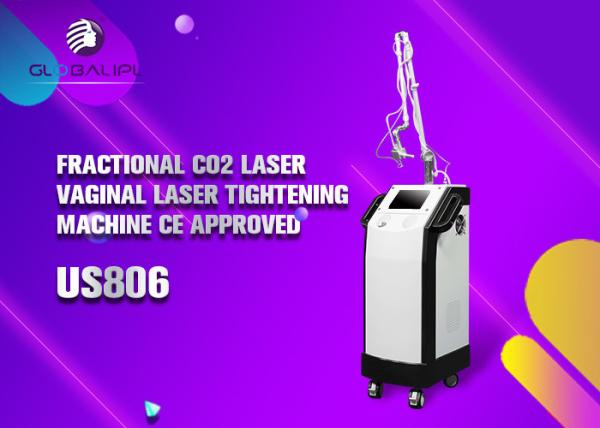

Radiofrequency RF CO2 Fractional Laser Beauty Equipment System ODM
I.Theory
Unlike traditional laser, fractional laser will only cover part of
the skin tissue, leaving the surrounding tissue intact, and then
cause a series biochemical reactions inside the skin, thus to reach
the results of skin lifting & resurfacing, pigments and scar
removal, etc, finally let the skin return to young again. The
unaffected areas act as a reservoir for more effective and rapid
tissue healing and collagen production, thus lift the skin and
removes speckles and pigments.
a) Red areas are the zones of ablation in fully ablative standard
resurfacing, which need longer healing time;
b) Red areas are the microscopic treatment zones (MTZs) of
fractional photothermplysis (FP) and the blue areas are the bridge
of intact, unaltered skin which will stimulate collagen production,
thus faster recovery as well as enhance effective.
c) White dots are fractional laser on skin.
II.Applications:
1. Skin renewing and resurfacing
2. Wrinkle removal, skin tightening
3. Acne and acne scar removal
4. Smooth burnt scars and surgery scars, etc
5. Remove intractable chloasmas and pigmentation
6. Sun damage recovery
III. Features:
1Radio frequency co2 fractional laser
2. Individual design of laser structure, greatly facility laser
replacement and easy daily manintenace
3. Display: 8.4" color touch LCD screen
4. Humanized software control, stable laser output, more safety
5. Smart articular arm, high accuracy
6. Excellent performance, not affect people's normal life and study
7. Packing: aluminum alloy case
IV. Parameters:
Basic specification |
Wavelength | 10.6μm, far-infrared laser |
Control | LCD 5.6 inch |
Pulse frequency | 33.3 Hz |
Duration | 0.1~10 ms |
Distance | 0.1~2.6 mm |
Interval | 0~6s |
Repeat | 1~5000ms |
overlap | 1~20 times |
Average power | 30W |
Working mode: | Continuous pulse, single pulse, interval pulse |
Scan Graphics | Square, rectangle, round, tringle, oval, 6-diamond shape, line |
Dot quantity | 400 dots at most |
Working state | Hyper-pulsed mode |
Scan mode | Sequence scan, Random scan, maximum distance scan |
Pulse energy | 10mj to 130mj is optional for each dot. |
penetrability | 2mm |
Technical specification |
Condenser focus | f=50mm |
Beam divergence angle | 0.3 mrad |
Spot size | 0.05 mm |
Aiming beam | Less than 2mW, 635nm red semiconductor laser |
Cooling system | air cooling |
Environment temperature | 5-40℃ |
Relative humidity | ＜80% |
Temperature in transit | -40-50℃ |
Humidity in transit | ＜85% |
Beam transport device | Articulated arm with 7-joint and balance weight |
Atmospheric pressure | 86.0kpa-106.0kpa |
Warming up time | 2 min |
Electromagnetic requirement | No electromagnetic |
Field interference |
N. weight (kg) | 28kg |
Size | 38X42X60cm |
Power supply | 220V/110V |
