808nm / 810nm diode laser super hair remover hair loss beauty
device
Description of Diode Laser Machine
1. Permanent hair removal
2. Micro-channel diode laser Emitter
3. Fast *Safe *Painless * Non Invasive * Reliable * Effective
Display
Work Theory
Diode laser hair removal technology is based on the selective
dynamics of light and heat. The laser goes through the skin surface
to reach the root of hair follicles, light can be absorbed and
converted into heat damaged hair follicle tissue, so that the hair
papilla is damaged without injury surrounding tissue. No pain, easy
operation, the most safe, technology for permanent hair removal
now.
Machine parameters
| Basic Parameters |
| Laser type | Micro-channel Diode laser |
| Model No. | US408 |
| Output power | 2700W |
| Wavelength | 808nm |
| Display | 8.4”color touch LCD screen |
| Spot size | 13x13mm2 |
| Pulse width | 10-1400ms adjustable |
| Energy | 1-120J/cm2 adjustable |
| Frequency | 0.5-10Hz |
| Cooling | Water + air + Semiconductor |
| Machine size | 56x40x108cm |
| Package | Aluminum Cases |
| Voltage: | AC 220V/50Hz; AC 110V/60Hz |
Features
1. Powerful cooling system- Semiconductor Thermal Management
System:
1) the water temperature could decrease 11°C within 10 minutes;
2) the machine could work continuously for 24 hours a day without
stop more treatments permitted;
3) “constant temperature” working prolong laser and machine life
save cost.

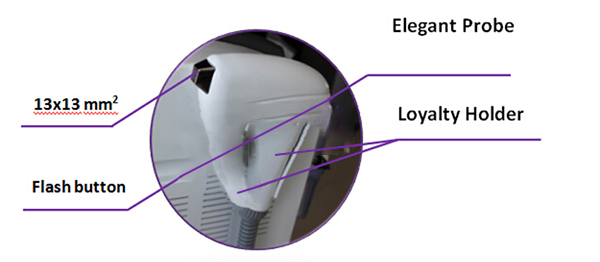

2. New developed handpiece & connector practical and elegant.
1) The imported tube is locked firmly to probe and connector strong
& durable;

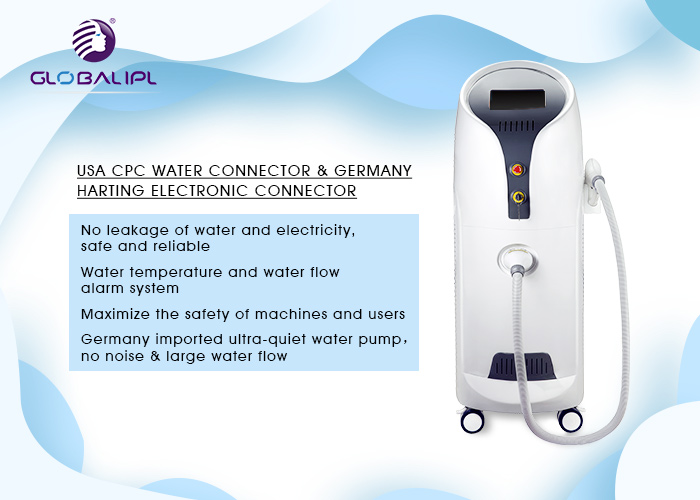

2) USA CPC Water Connector & Germany Harting Electronic Connector.
3) Humanized bending design maximum protect inner cable from
vertical fold and water flow smoothly for better cooling.
3. Big spot size 13x13 mm2 high efficiency quick speed achieves large area treatment.
4. Imported high quality diode laser bars Germany standard.
5. Imported water pump no noise and larger water flow for better
cooling prolong laser life.
6. Medical CE approval high quality promised.
Application
Permanent & Painfree Hair removal on all body of skin type I-VI.
-- lip hair removal beard hair removal chest hair removal armpit
hair removal back hair removal & hair removal on outside bikini
line etc.
Any hair color removal
Any skin color hair removal
Notices for 808nm Diode laser:
After long time clinic test and some feedback from our customers,
we update the information as below,
1. Room temperature for diode laser machine is 20-26°C.
2. Best effect energy is within 15-40J.
3. Don’t adjust the energy too high to do therapy.
4. Good effect hair removal depends on the low-energy-overlapping,
but not depends on big energy treatment. (repeat treatment with low
energy on the same place, it is comfortable and good effect)
Warning
US408 Diode Laser Hair Removal Instrument can emit high-intensity
infrared laser beam, in order to protect the eyes, the users and
patients are requested to wear appropriate safety goggles in
accordance with (NOHD) standard.
Pay attention to the following precautions:
※DO NOT point the laser directly to the eyes and skin.
※DO NOT cut off power supply when the instrument is working.
※Be sure to get familiar with structures and specifications of the
instrument before using.
