Laser Spot Removal ND YAG Machine Professional Electron Optic Q
Switched
Specification
Laser type: | Nd. Yag Laser (q-switch) |
Wavelength: | 1064nm/532 nm |
Diameter of spot: | 1-7 mm, with adjustable treatment probes |
Laser aiming: | red semiconductor aiming light, wavelength is 650nm-670nm |
width of pulse: | 6~12ns |
Single pulse energy: | 800mj |
Frequency: | 1~10 Hz |
Cooling system: | closed-off water circulation inside + air cooling |
Machine zise: | 83*32*83cm |
Net weight: | 60kgs |
Voltage: | 220V/110V |
Advantage
1.Electro-optic Q-switch ND yag laser, releases actual single pulse
of laser energy. Really achieve to
painless treatment and micro-injury to skin, long-term lasting
treatment result.
2. Single pulse energy 800mj
3. Professional for skin rejuvenation
4. Spot size: 1~7 mm adjustable
5. Alarm protection system of water flow and water temperature:
protect people and machine against
any risk at the first time.
Applications:
1. Tattoo removal: Remove black, blue, brown, and colorful (such as
red,
yellow, green) tattoo on eyebrow, eye line, lip line, and other
parts of body
2. Pigment deposit dispelling
3. Skin Rejuvenation
4. Eliminates the age pigments, spots, birthmarks, and pigment
changes
Theory
Laser tattoo equipment adopts the Q switch mode, which makes use of
the instantaneous
emitted laser to break the pigment in ill structure.. That’s the
laser instantaneous emit theory:
centralized high energy emit suddenly, which makes laser of settled
wave band instantaneously
penetrate through cuticle to the ill structure in 6ns, and break
the relevant pigments quickly.
After absorb the heat, the pigments swell and break down, some
pigments ( in skin-deep cuticle )
fly off the body immediately, and other pigments ( deep structure )
break down then become the
tiny granule can be licked up by the cell, digested and egest from
the lymph sell. Then the
pigments in ill structure lighten to disappear. Moreover, the laser
do not damage the around
normal skin.
Features:
1. Fashionable design
2. Big laser output energy: higher effiency and more comfortable
treatment
3. Humanized treatment menu: English system language, simple
operation
4. Alarm of water flow: if no water inside or few water inside
machine, the system will alarm
automatically-sound alarm and stop all working immediately
5. 100% American imported "plug and play" handle connector,
integrating with a perfect
water-electricity isolation assembly inside; increase the stability
of the machine greatly and
facility actual operation actually
6. High quality machine shell of ABD material, with OEM painting
services

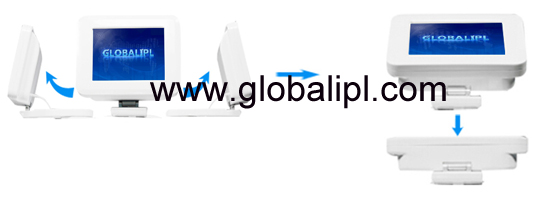

7. The screen can be folded up and down,rotate 180°left and right
